55inch LCD Outdoor Digital Signage 8ms Response Time 178 * 178 Viewing Angle

Name: 55inch LCD Outdoor Digital Signage 8ms Response Time 178 178 Viewing Angle
Brand: Genevision
Price: 1350 USD

Wholesale 55inch LCD Outdoor Digital Signage 8ms Response Time 178 * 178 Viewing Angle from china suppliers

Brand Name : Genevision

Model Number : MAD-550

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1pc

Price : 1350usd/pcs

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 3000usd/pcs

Delivery Time : 10-15 working days

Packaging Details : Packing in the carton and then strengthened with wooden case.

Keyword : DIGITAL DISPLAY KIOSK

Application : Outdoor

Max Resolution : 1920*1080

Viewing Angle : 178*178

Color : 16.7M

Contrast Ratio : 3000:1

Response Time : 8ms

Installation : Floor Standing Kiosk

Panel brand : Sumsang/ LG

Contact Now

Outdoor ced screen business plan 55inch outdoor display signage Big outdoor lcd screen

Specifications

Panel parameter	Panel type	55”LCD panel
	Display area	1209 *680mm
	Display Aspect ratio	16:9
	Back light type	LED
	Resolution	1920*1080
	Brightness	2000cd/m2
	Contrast	3000:1
	Viewing angle	178°(H) / 178°(V)
	Lifespan	60000 hours
Front protective glass	6mm AR laminated glass	99.99% sun UV
		More than 50% of solar radiation
		Light transmittance is over 93%
		Reflectance is less than 3%
		The total heat insulation rate of sunlight is over 50%

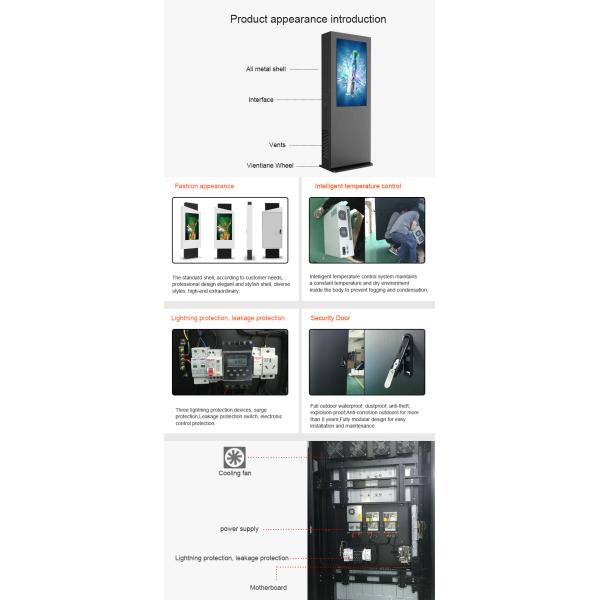

		Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater)
Cooling system	Fully intelligent independent research and development of cooling system	Voltage 24V
		Working Voltage 20.4-27.6V
		Starting voltage 12V
		Average speed 2400 rpm minimum speed 2160 rpm
		Average current 0.26A maximum current 0.312
		Access to power average 3.12 max 3.74
		Average airflow 74 minimum airflow 66.6
		Average static pressure 2.0 Minimum static pressure 1.8
		Noise 33db
		It can automatically adjust the fan speed according to the working temperature, with heating function to meet the outdoor work of -40-55 degrees.
Electrical parts	Backlight power supply	According to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers)
	Automatic light perception	Automatic Photosensitive Probe - Automatically recognizes the surrounding environment to automatically adjust the screen brightness
	Lightning protection device	Zhengtai lightning protection device
	AC contactor	Chint AC contactor
	Microcomputer time switch	Time switch can be set in different time periods. More than 20 groups can be set.
	power input	AC 108-115V AC 208-240V
	Total power	1200W
Working environment	Fan voltage	24V
	Lcd screen voltage	24V+12V mix power supply 200-400W
	Working temperature	-35-55°
Product related	storage temperature	-20°C to 60°C
	Working humidity	5% to 100%
	Storage humidity	5% to 100%
	Installation	Floor standing
Appearance	Package	Use pearl cotton shock absorber + wooden frame packaging
	Appearance colour	Silver
	Frame material	Hot-dip galvanized steel sheet T=1.5+ outdoor double-sided spray outdoor powder
	Gross weight	350KG
